MPM 1300

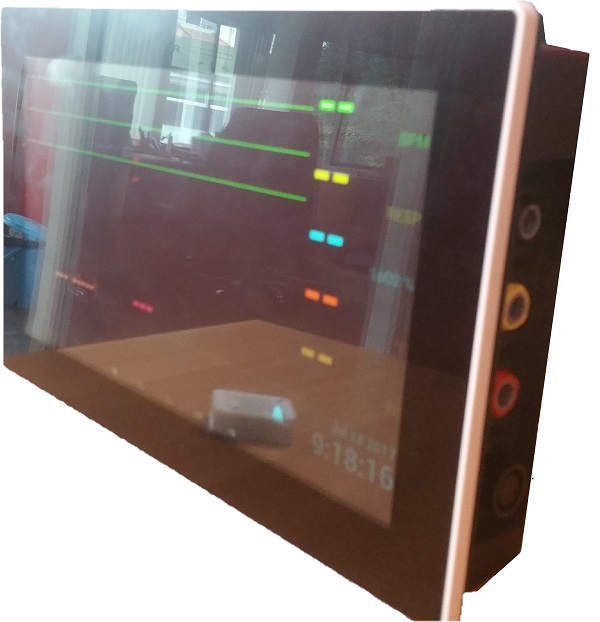

The MPM1300 is an Android based  Patient Monitorwith a 13" touch screen display. The MPM1300 represents the next generation of vital signs monitoring. It is able to store measurements on a server that can be accessed securely by any PC or Tablet using a standard web browser over the Internet.

• EKG
• Blood Pressure
• Pulse/SPO2
• Temperature
• Weight (Bluetooth connected)
• Blood Glucose Reader (USB connected)
• USB input/output jacks (x3)
• Electronic Patient Record
• External 12v Medical Grade power adapter
• Builtin Battery Backup

Price

USD 899 (includes 1 set of adult size accessories)

Specifications



ECG

• measurement range: ±0.5mVp ~ ±5mVp
• Heart Rate display range: 20bpm ~ 300bpm
• Heart Rate display accuracy: ±2% or ±2bpm, whichever is greater.
• Alarm delay time: <=12s
• Input noise level for ECG amplifier: <=30uVp-p
• Input impedance: >= 5M ohm (single ended)
• CMRR (common mode rejection ratio): >=89dB
• ECG bandwidth: 0.5~40Hz(monitoring mode), 0.05~75Hz(diagnostic mode)



SPO2

• SpO2 measuring range: 35% ~ 99%
• SpO2 measuring accuracy: Arms <=3% for SpO2 range from 70% to 100%
• Pulse Rate measurement: 30~240bpm with 2% or ±2bpm accuracy
• Update rate: 8 pulse beats
• Low perfusion performance: Accuracy of SpO2 & PR still meets the declared
• specification while the pulse amplitude modulation ratio is as low as 0.4%.



NIBP

• Pneumatic pressure measurement: 0~300mmHg with ±3mmHg accuracy
• Air leakage: <2mmHg/minute @ 300mmHg with 500cc cuff volume
• Systolic pressure range: 40~270mmHg for adult, 40~200mmHg for pediatric
• Diastolic pressure range: 10~210mmHg for adult, 10~150mmHg for pediatric
• MAP range: 20~230mmHg for adult, 20~165mmHg for pediatric
• BP accuracy: Mean error <= ±5mmHg, Standard deviation <= 8mmHg.
• Pulse Rate measurement: 40~240bpm with 2% or ±2bpm accuracy
• Blood pressure measuring time:< 30 sec. for typical adult (80/120mmHg, 75bpm) at manual or auto mode;
• Time interval selection at auto mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90 minutes.
• Over pressure protection with limit of 320±10mmHg by dual transducers



Respiration

• Respiratory Rate measurement range: 0~120rpm
• Respiratory Rate measurement accuracy: ±10%



Temperature

• Temperature measurement range: 25.0~45.0 °C
• Temperature measurement accuracy: ±0.2 °C
• response time: <=30 sec.



Body Weight

• measurement range from 5kg-180kg
• BMI Caliculations
• Measurement in Lbs and Kgs.
• Bluetooth enabled



Communication Support:

• Wifi (802.11 a/b/g)
• 1 x USB connectivity to PC/Laptop
• 2 x USB connectivity for external devices (Keyboard/Mouse/Camera/USB probes)



Battery Backup:

• Builtin rechargable 3.7v 10,000mAh rechargeable Lithium-ion battery.

Display and Control Device:

• Android Tablet
• Laptop/PC
• Mobile Phone

---
